Trailer Hitch

The trailer hitch options for the car range from inexpensive (the route I took) to very expensive.  It's a shame the car didn't come with factory trailer hitch standard, let alone options, as I think most of us have trailering needs at least occasionally.  Personally, we have very limited applications.  If I trailered a lot, I might consider Invisihitch options.

At any rate, this is the route I took.  I bought a Draw Tite hitch and a 4-prong harness from eTrailer.com.  This hitch fits the stock 2016 car perfectly and requires no cutting of the bumper.  The 4-prong harness will get the job done, but unlike Invisihitch/OEM kits, it does not disable the rear park distance control and offer other cool camera options.  You have to disable PDC manually.

The install was straightforward but tedious.  The video instructions from eTrailer are very good, but there are a LOT of plastic clips on the F15.  I took some pictures of the rear bumper cover removed so maybe you can get a better idea of where they are.  You need to take your time with this mod in order to not scratch or mar the car.

I have owned a Draw Tite hitch before.  And, while they come nicely powder coated or painted, they do tend to rust after many years.  To add some protection for this one, I roughed the surface with 0000 steel wool and added a coat of semi gloss Rustoleum paint to this one.  Hopefully that will help some.  I found the best price for the hitch on Amazon that particular day.  Amazon shipped the hitch basically unboxed with a shipping label on it.  It arrived seriously scratched.  I complained and asked for a replacement, the replacement came in a box and was properly wrapped.

For the wiring, I ran my wires out of the car on the right/passenger side, by modifying an unused grommet and sealing it with black RTV silicone.  This way the trailer harness is available by the hitch, and we don't have to do the "close the harness while it is sticking out of the tailgate" thing.  It's a little more factory-like.  I did have to cut the eTrailer harness to do this, but my solder and heat shrink connections are all inside the vehicle and not out in the elements.  The F15 uses modulated signals for brake and tail lights, so you only connect 1 trailer harness wire to the car for both and the eTrailer wire harness module can figure out if the signal is for tail lights or brake lights.

Draw Tite 75600 Hitch Class III 2" receiver, $171.58r
eTrailer 119190KIT 4-prong wire harness from eTrailer.com, $75.95r

Total cost of this mod = $247.53
Total investment in vehicle to date = $4733.53


Black RTV inside and outside of this grommet


I mounted the trailer light controller on the right/passenger side.  It fit nicely into an unused spot.  But, this required extending the wiring to the left/driver's side tail light.


Clips around inner tail light

Center clips



No trimming required.


I didn't use the replacement rivets provided by Draw Tite.  Their heads were much smaller than stock.  I did try to use the original BMW ones (bought new) but my rivet gun could not accomodate metric (I assume) size.  I ended up using some Z3 rivets I had in stock.
These are what BMW uses to hold the wheel arch trim in place.  But, my US-sized pop rivet gun couldn't run them.




Mud Flaps

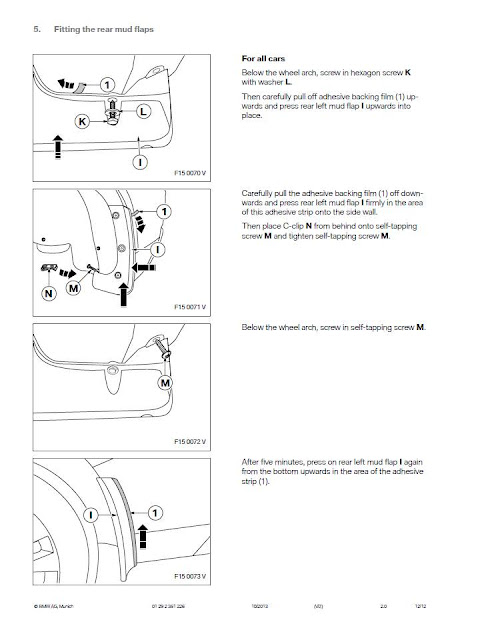

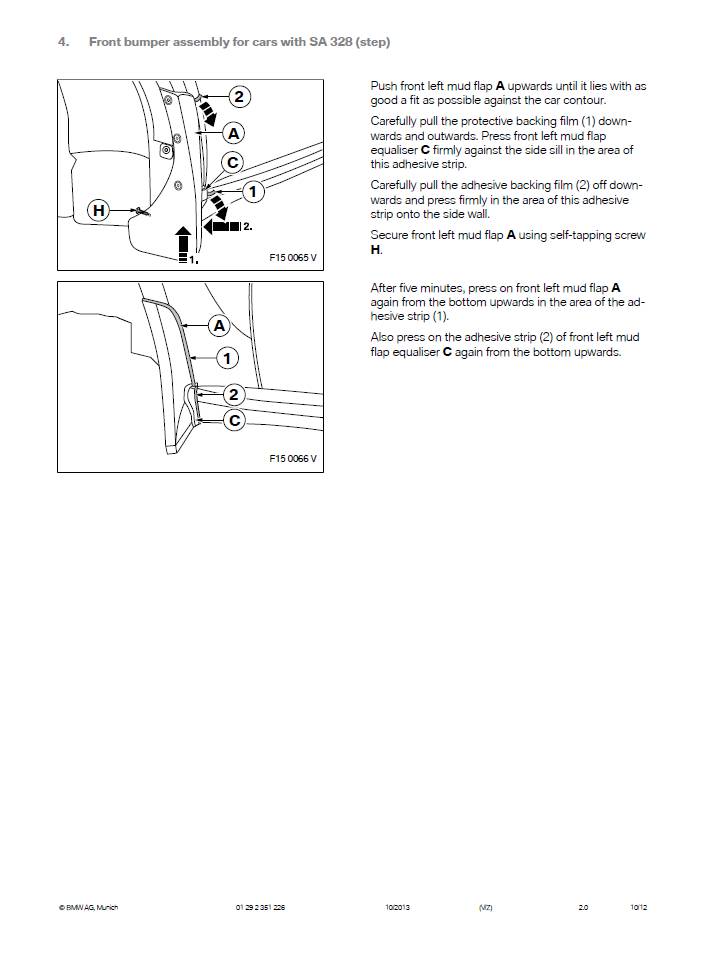

Installed Original BMW mud flaps, front and rear.  The fronts are tricky if you have running boards (Option 328) like we do.  You basically have to cut the stock mat to fit the running board.  Sort of a pain.  BMW does include a template help you create the cut so it's not a huge deal.  Since accessory installation instructions can be hard to find and/or not supplied with the parts, I am uploading a copy here.  Blogger won't let me host PDF copies, so you will have to page through them one by one, sorry!

I didn't remove any of the wheels to install any of the flaps.  For the fronts, you can turn the steering wheel for access.  For the rears, I had the rear of the car on jackstands to install a trailer hitch, and there was enough room.

Front Mud Flaps, set, BMW 82162302402, $100.00r
Rear Mud Flaps, set, BMW 82162302408, $100.00r

Total Cost of this mod = $200.00r
Total Investment in Vehicle to Date = $4486.00













Here is a shot of the rear flaps installed.
